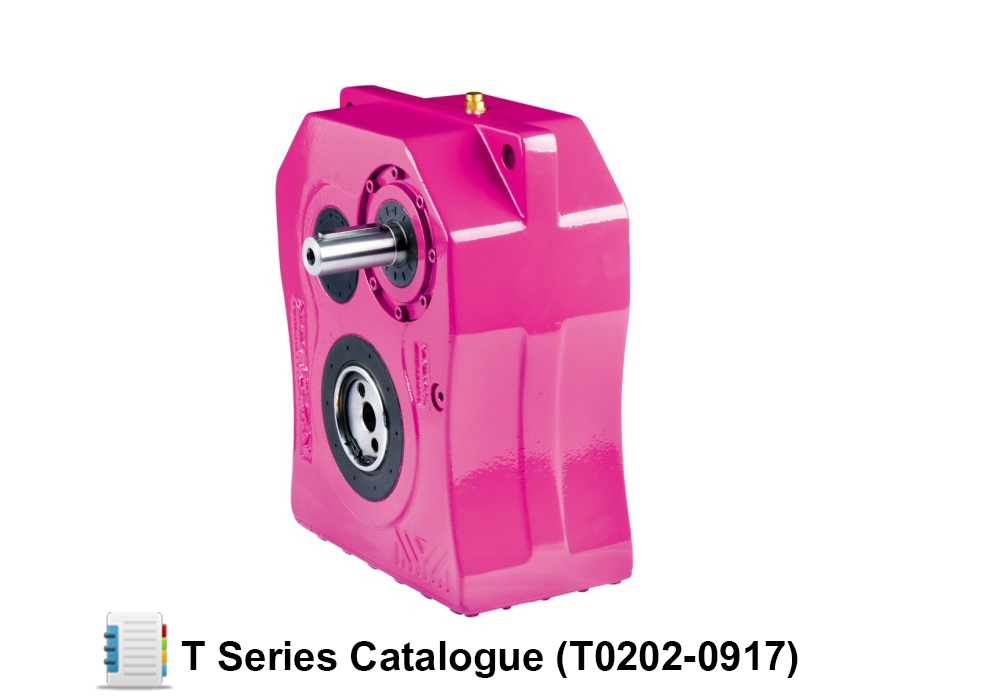

YILMAZ T-SERIES SHAFT MOUNTED
Yilmaz Reduktor T-Series Shaft Mount Gearboxes are manufactured in Europe and interchangeable with leading manufacturers such as Fenner SMSR series and Renold SMX series.
Yilmaz T-Series gearboxes are available on quick delivery times and are a cost effective alternative to other leading manufacturers.
Yilmaz Reduktor T-Series Shaft Mount Gearboxes are manufactured in Europe and interchangeable with leading manufacturers such as Fenner SMSR series and Renold SMX series.
Yilmaz T-Series gearboxes are available on quick delivery times and are a cost effective alternative to other leading manufacturers.
- Manufactured in Europe
- Cast iron housing
- Nominal torque 18,000nm
- 1 Year warranty
- Atex certification available
SPECIFICATIONS
| SIZES | 10 DIFFERENT SIZES TO CHOOSE FROM |
| REDUCTIONS | UP TO SIX STAGES |
| NOMINAL TORQUE | 200NM TO 18,000NM |
| RATIO RANGE | 5/1 TO 31/1 |
| INPUT OPTIONS | SOLID SHAFT |
| OUTPUT SIZE | 30MM TO 135MM DIAMETER |
| ACCESSORIES | TORQUE ARM, SHRINK DISC & BACKSTOP |
| OIL TYPE | MINERAL |
