General Gearboxes

Wide range of products for various applications in all areas of industry

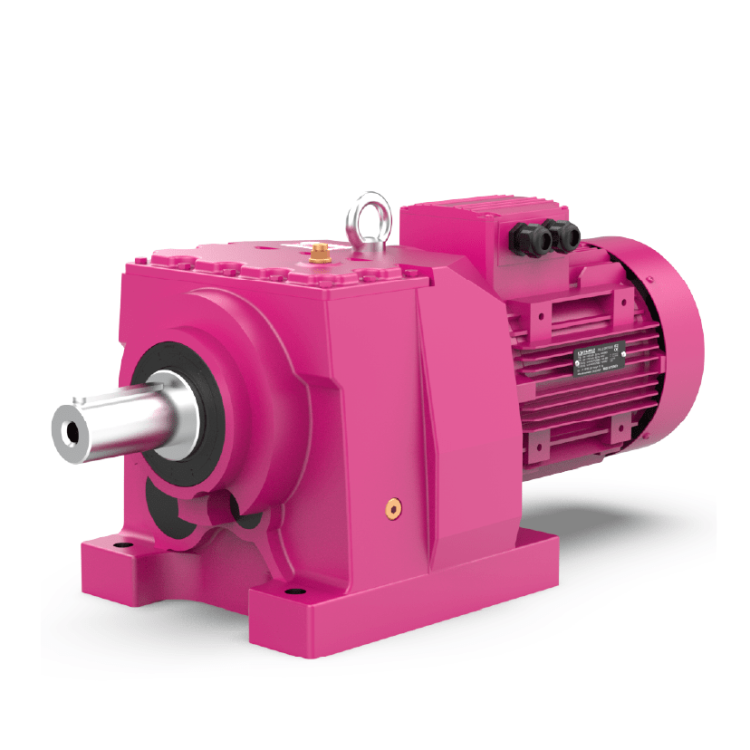

M SERIES

Foot-Mounted Helical Gearboxes

Torque: 50-18.000Nm
Motor Power: 0,12-160kW
Output Speed: 0,1-780rpm

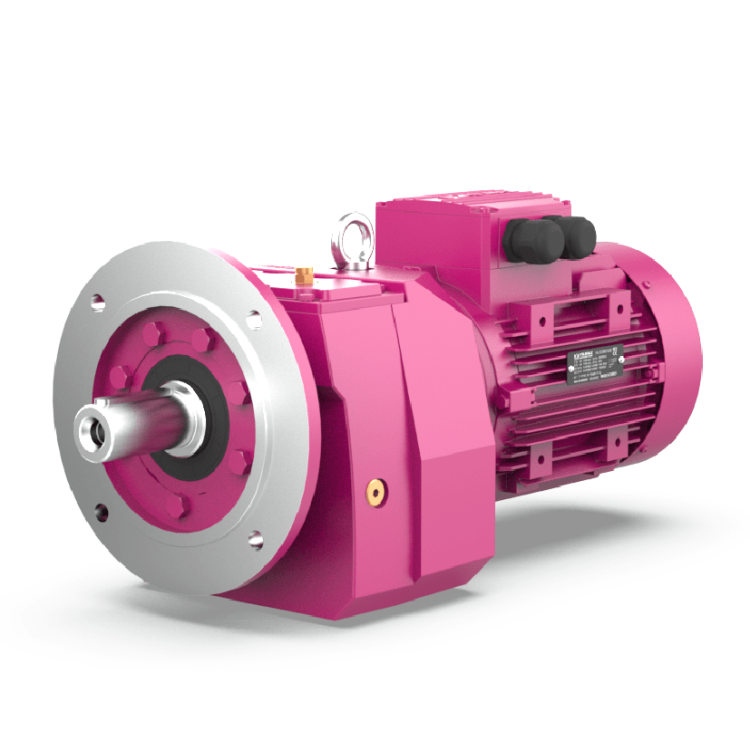

N Series

Flange Mounted Helical Gearboxes

Torque: 50-18.000Nm
Motor Power: 0,12-160kW
Output Speed: 0,1-780rpm

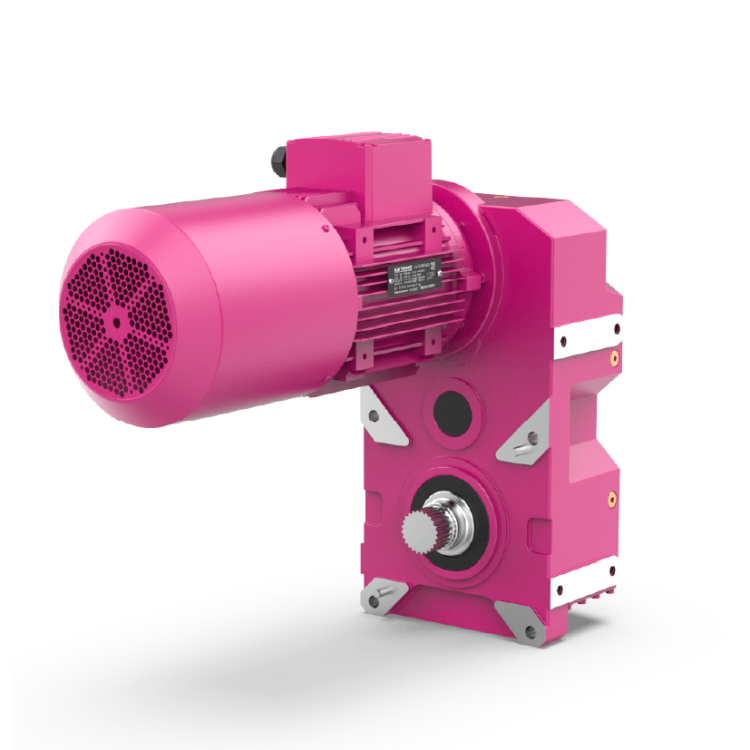

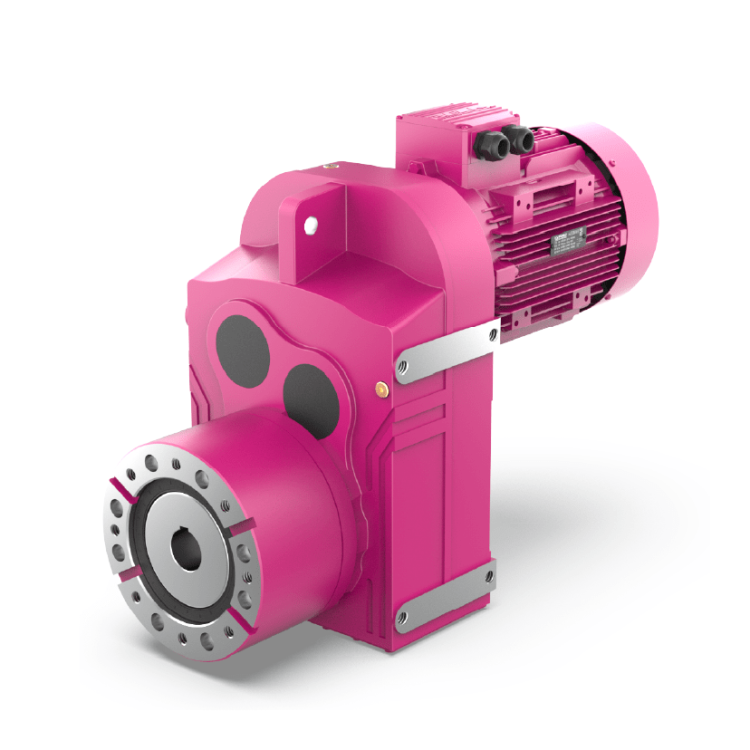

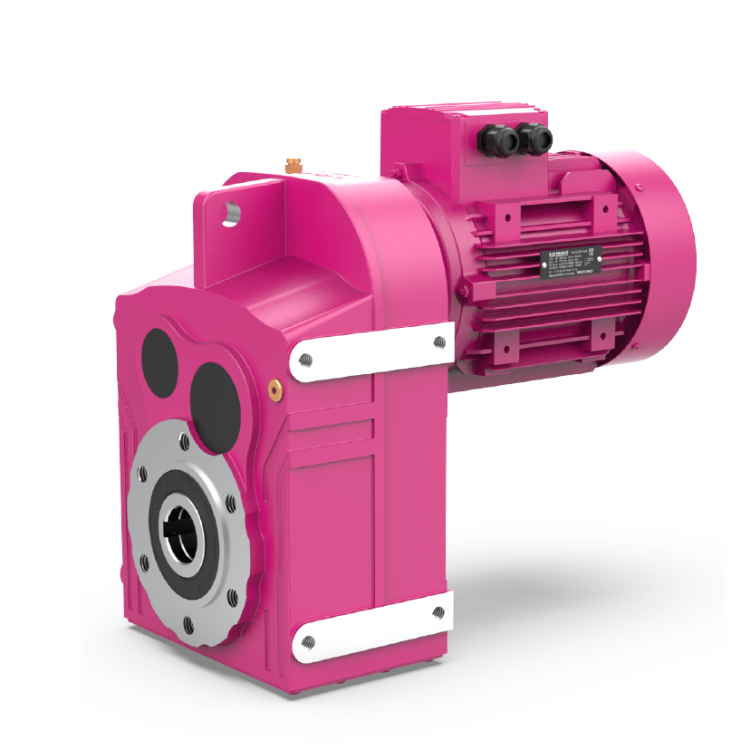

D Series
Parallel Shaft Helical Gearboxes

Torque: 130-18.000Nm
Motor Power: 0,12-160kW
Output Speed: 0,1-580rpm

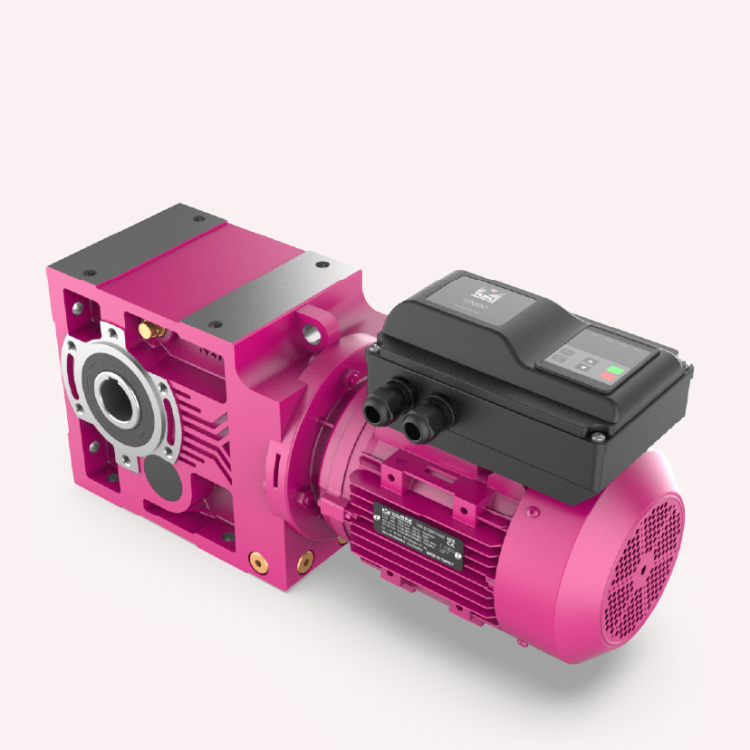

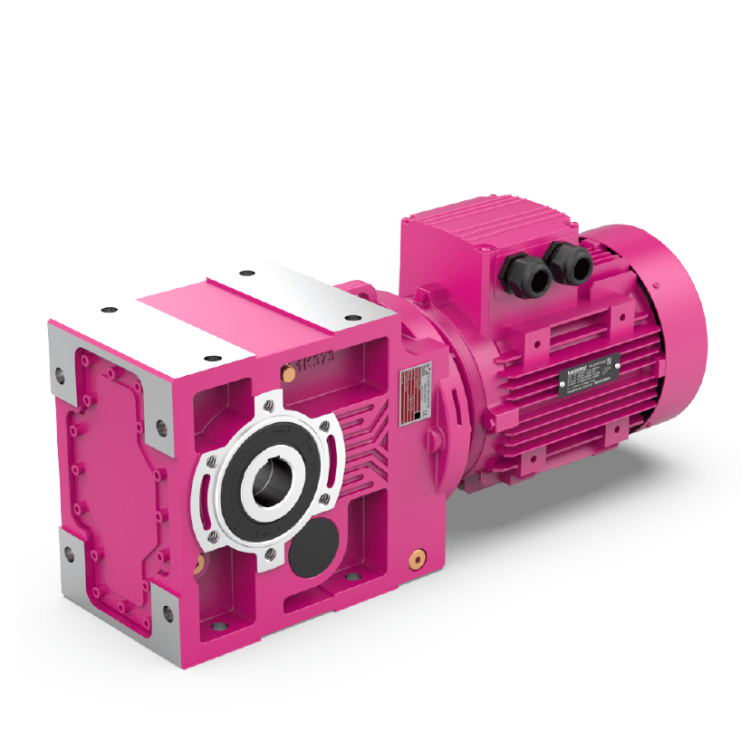

K Series
Bevel - Helical Gearboxes

Torque: 80-20.000Nm

Motor Power: 0,12-160kW

Output Speed: 0,1-460rpm

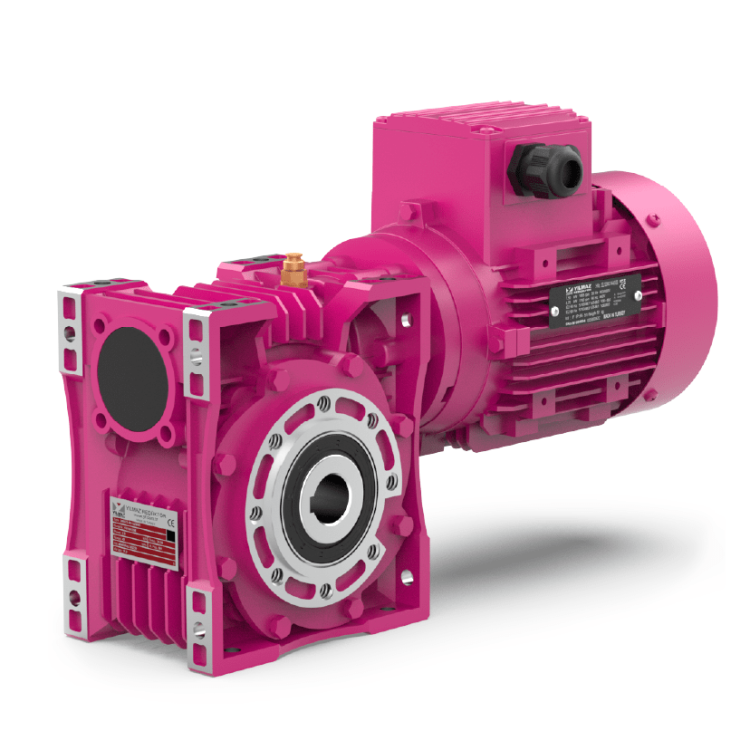

E Series
Worm Gearboxes

Torque: 5-1.000Nm

Motor Power: 0,06-7,5kW

Output Speed: 0,2-260rpm

Heavy Industrial Gearboxes

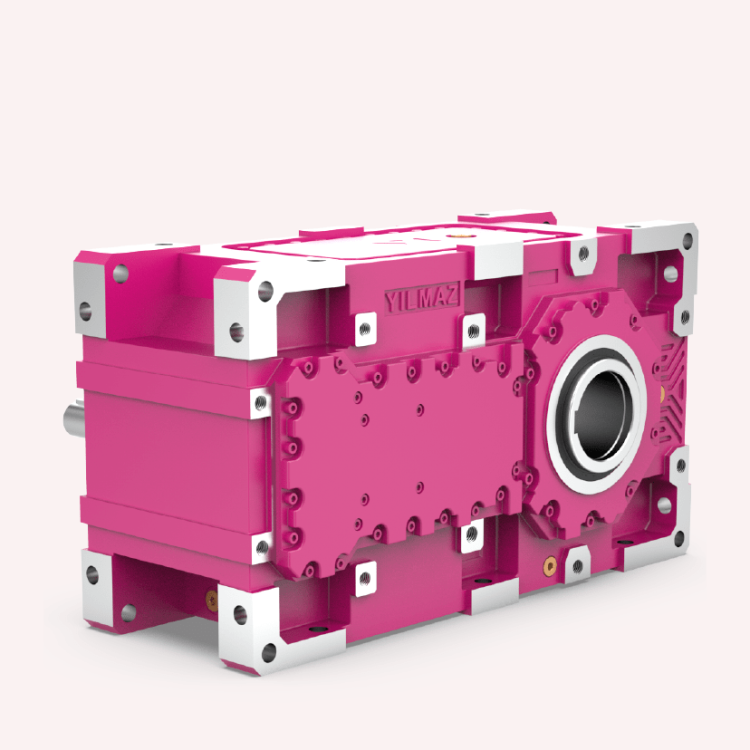

H Series
Industrial Helical-Geared Units

Ratio: 5,33-426

Torque: 4.850-470.000Nm

Output Speed: 0,1-263rpm

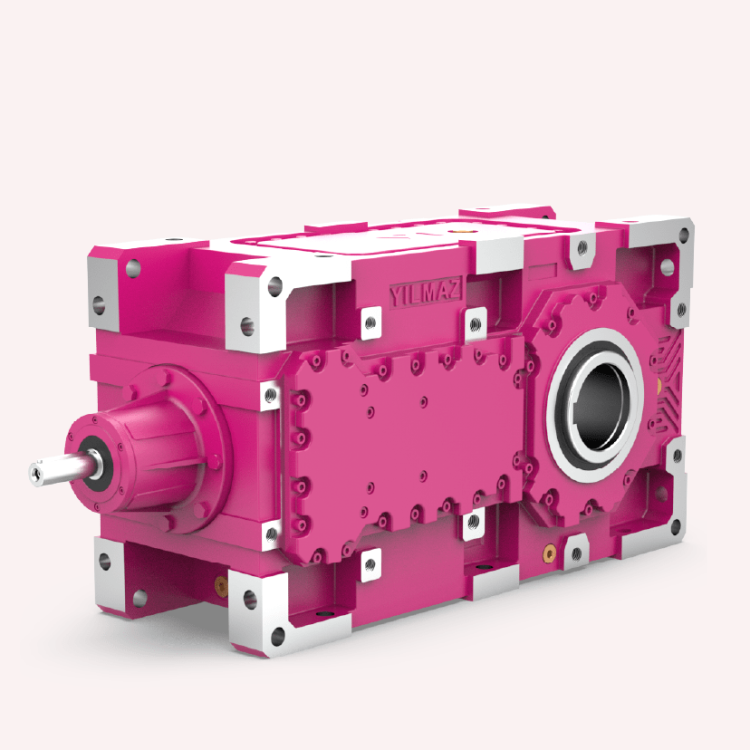

B Series

Industrial Helical-Bevel Gear Units

Ratio: 9,78-430
Torque: 4.850-345.000Nm
Output Speed: 0,1-140rpm

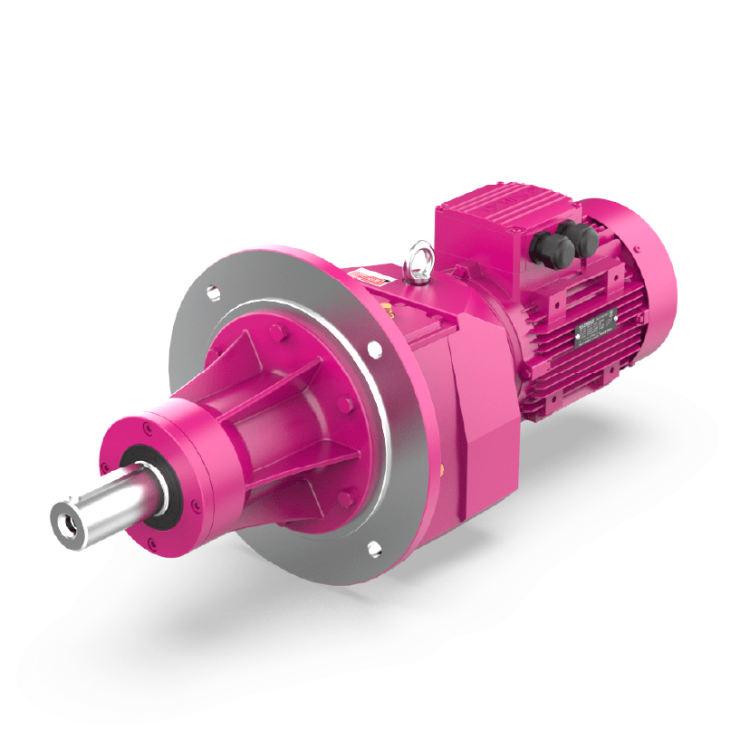

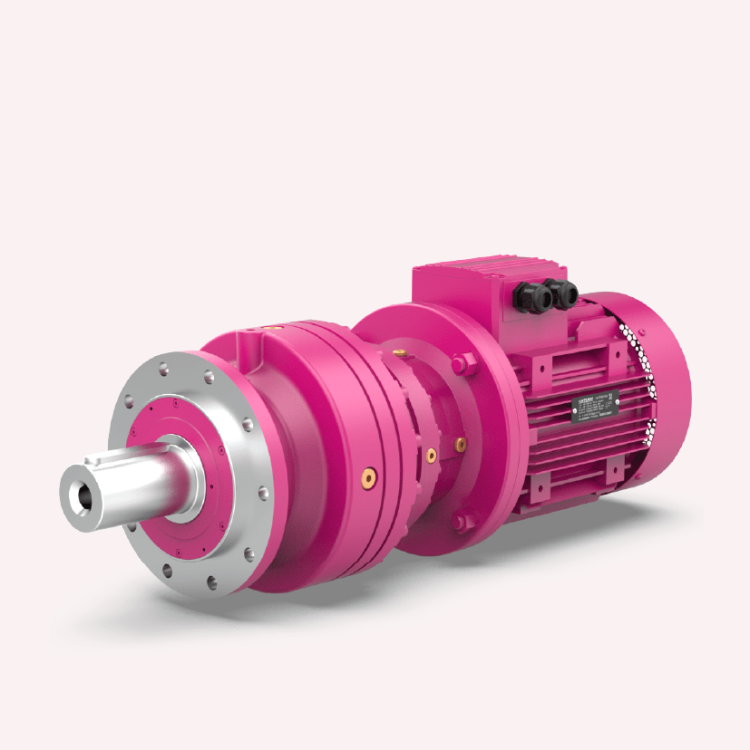

P.L Series
Planetary, Flange Mounted Gearboxes

Torque: 1.000-135.000Nm
Motor Power: 0,37-90kW
Output Speed: 0,1-410rpm

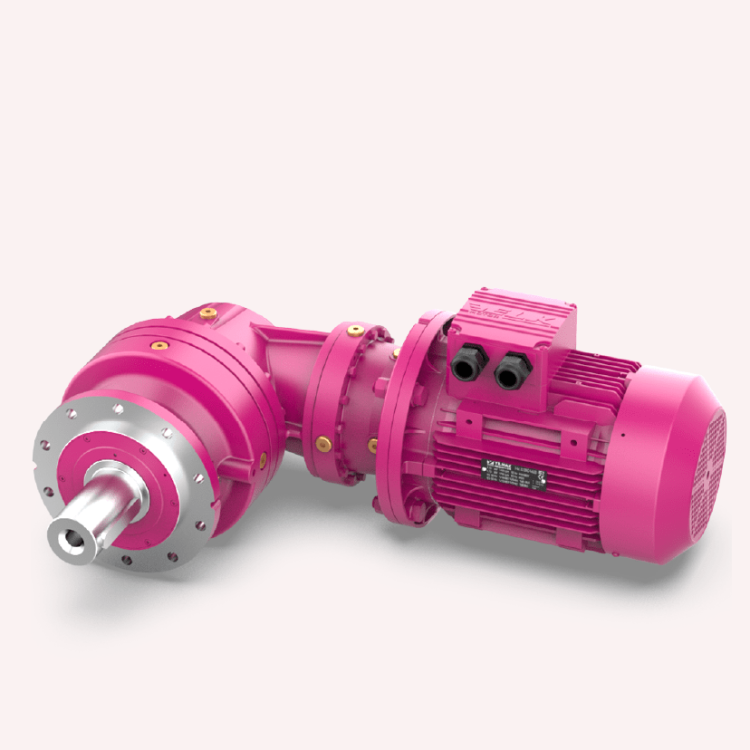

P.K Series
Flange mounted planetary gear unit with bevel gear input

Torque : 1.000-50.000Nm

Motor Power: 0,37-90kW

Output Speed: 0,1-780rpm

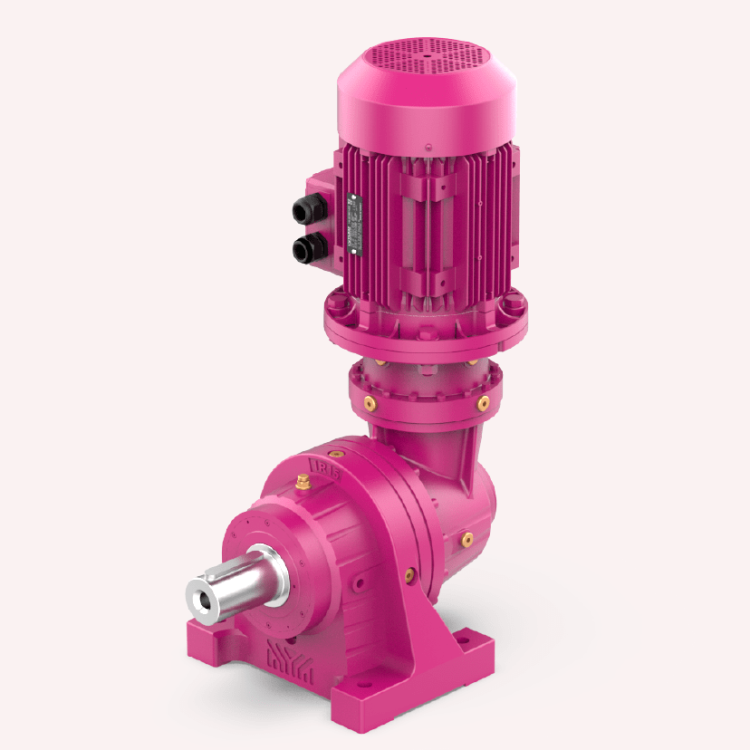

R.K Series
Foot-mounted planetary gear unit with bevel gear input

Torque: 1.000-50.000Nm

Motor Power: 0,37-90kW

Output Speed: 0,1-780rpm

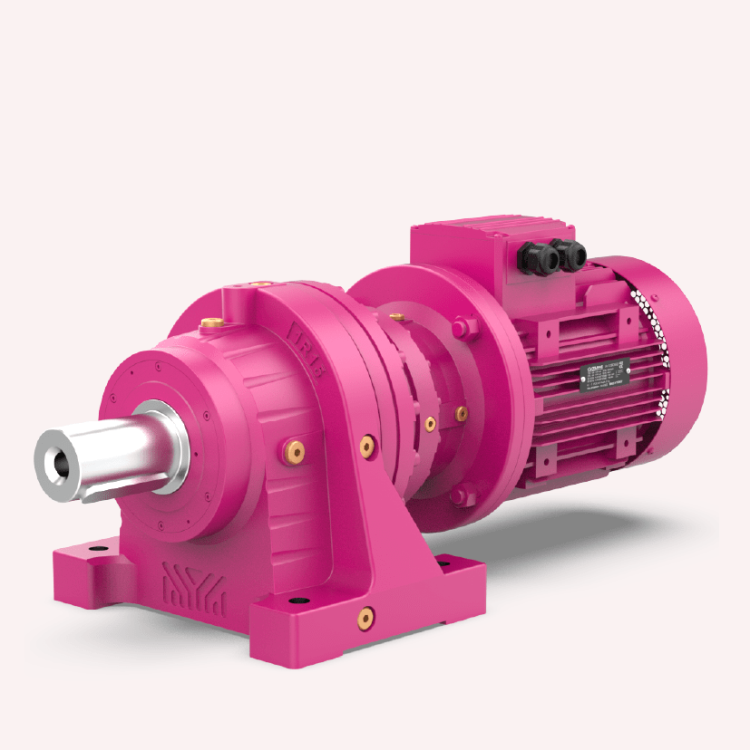

R.L Series

Planetary, Foot Mounted Gearboxes

Torque: 1.000-135.000Nm

Motor Power: 0,37-90kW

Output Speed: 0,1-780rpm

Sectoral Gearboxes

V Series
Hoist Drum Drive Units

Ratio: 24-234

Tonnage Range: 0,5-75tons

Motor Power: 0,37-90kW

P.B Series
Slewing Drives

Ratio: 4-2957

Torque: 3.100-20.000Nm

Output Speed: 0,5-375rpm

H.E Series
Extruder Gear Units

Ratio: 5,33-420
Torque: 4.850-165.000Nm
Output Speed: 0,1-263rpm

D.E Series
Extruder Gear Units

Torque: 130-18.000Nm
Motor Power: 0,12-160kW
Output Speed: 0,1-580rpm

K.E Series

Extruder Gear Units

Torque: 450-20.000Nm
Motor Power: 0,12-160kW
Output Speed: 0,1-460rpm

D.B Series

Mixer-Drywell Gearboxes

Torque: 600-18.000Nm
Motor Power: 0,12-160kW
Output Speed: 0,1-580rpm

K.B Series

Mixer-Drywell Gearboxes

Torque : 600-20.000Nm

Motor Power : 0,12-160kW

Output Speed : 0,1-460rpm

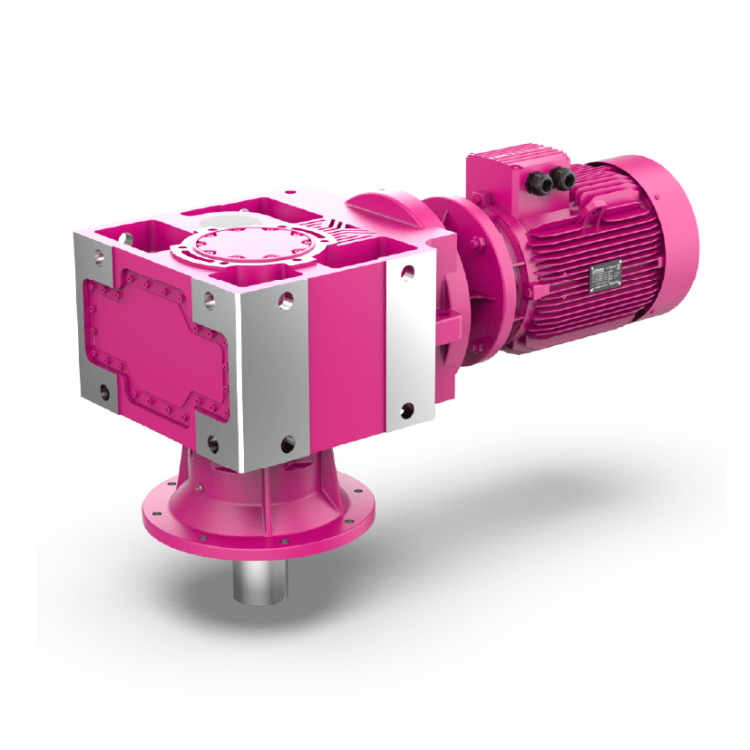

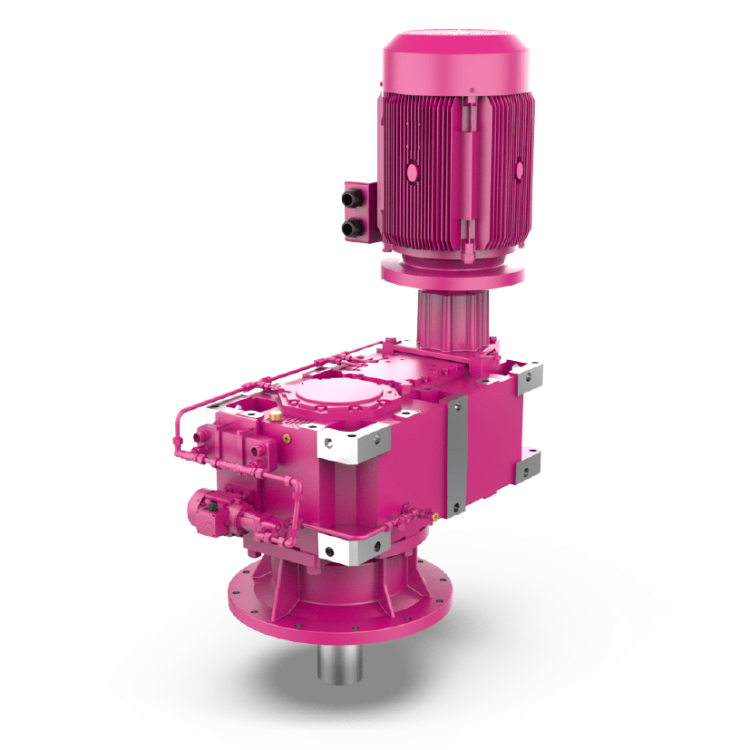

H.B Series

Mixer-Drywell Gearboxes

Ratio: 5,33-420

Torque: 11.000-70.000Nm

Output Speed: 0,1-263rpm

B.B Series

Mixer-Drywell Gearboxes

Ratio: 12-431

Torque: 11.000-70.000Nm

Output Speed: 0,1-125rpm

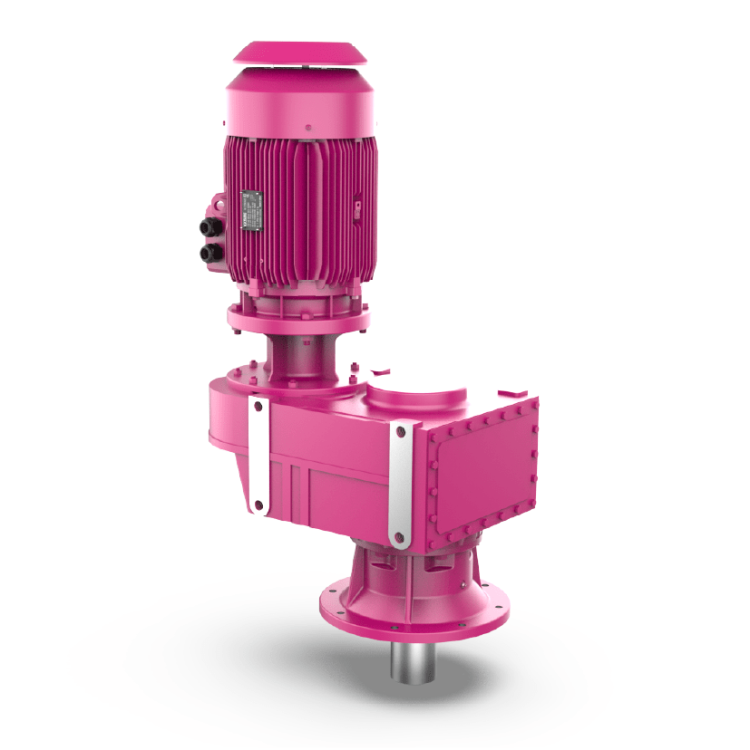

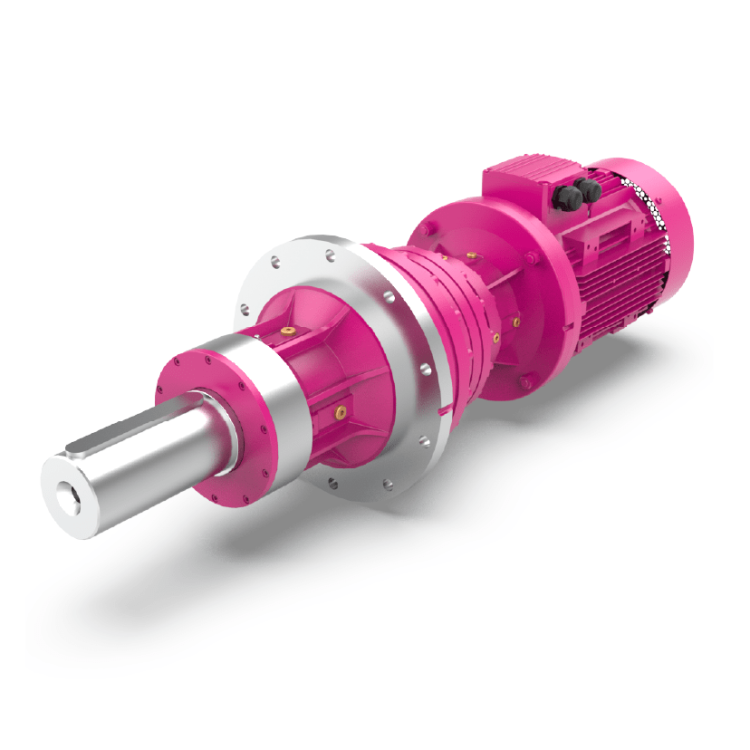

N.B Series

Agitator Gearboxes

Torque: 280-18.000Nm

Motor Power: 0,12-160kW

Output Speed: 0,1-414rpm

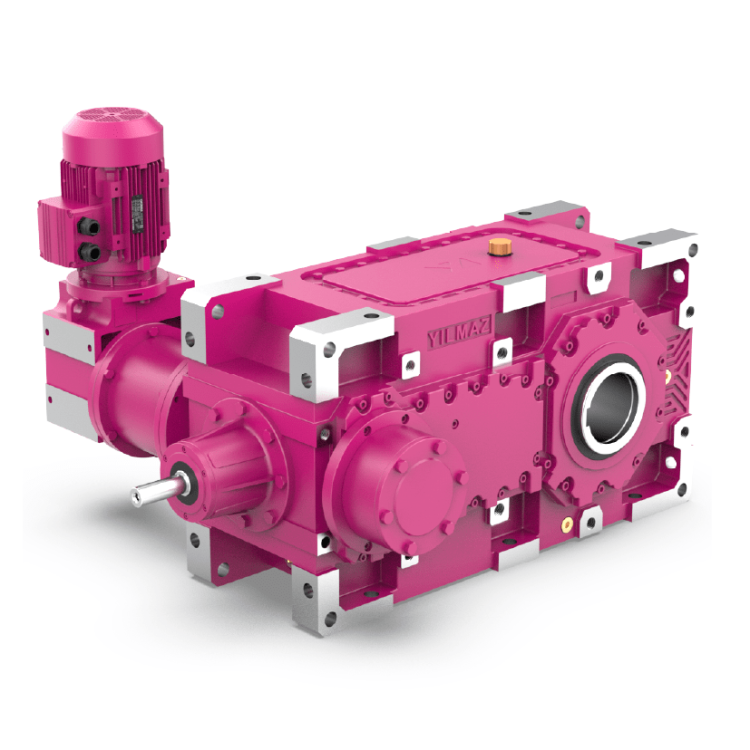

BTY Series

Industrial Helical-Bevel Gear Units With Auxiliary Drive

Ratio: 20-70

Torque: 4.850-165.000Nm

Output Speed: 20-70rpm

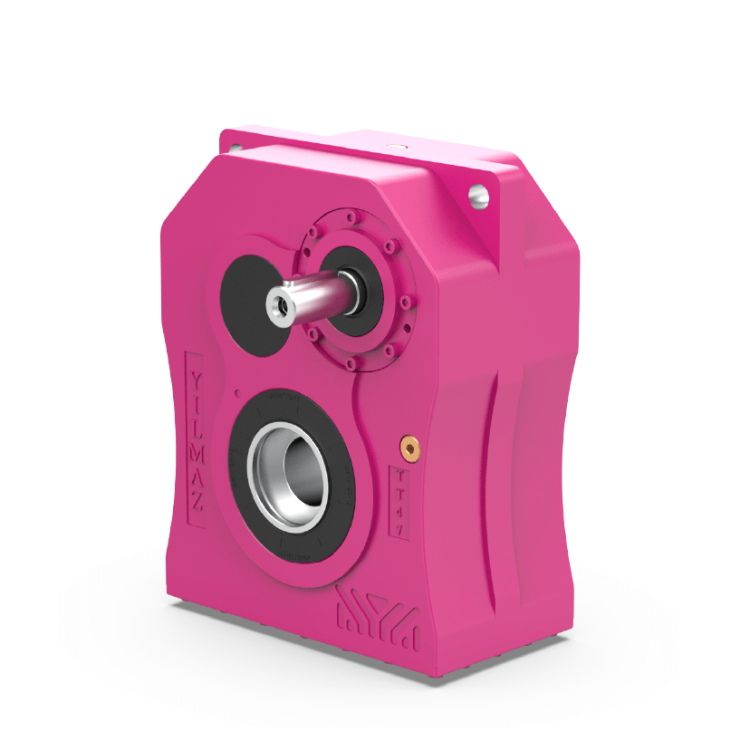

T Series

Conveyor Gear Units

Ratio: 5-30

Torque: 200-18.000Nm

Output Speed: 30-600rpm

PF Series

Concrete Mixer Gear Units

Ratio: 11-28

Torque: 9.800-21.700Nm

Output Speed: 50-150rpm

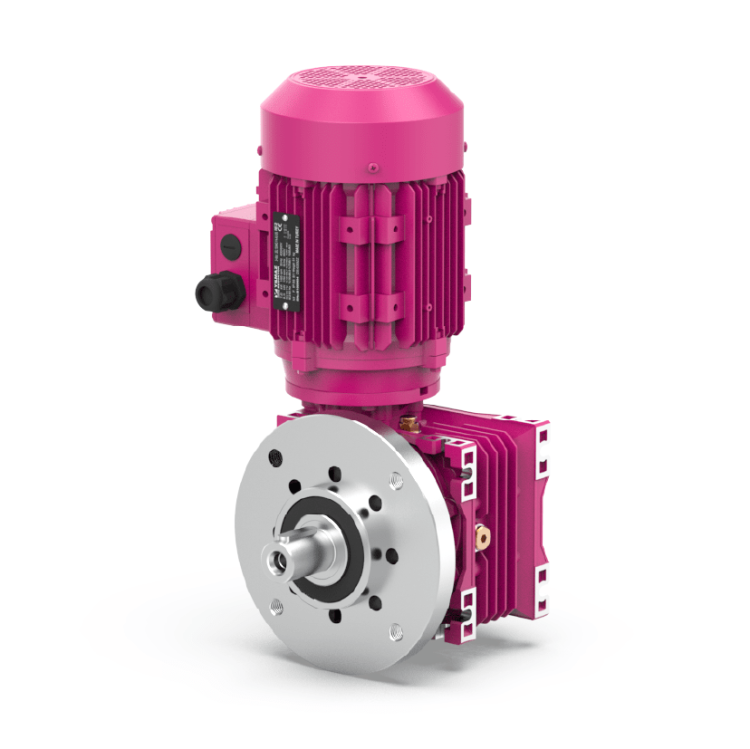

EV Series

Worm Gearboxes for Bandsaw Machines

Torque: 150-1.000Nm

Motor Power: 0,37-7.5kW

Output Speed: 8-413rpm

KR Series

Bevel-Helical Gearboxes for Bandsaw Machines

Torque: 140-15.000Nm

Motor Power: 0,12-90kW

Output Speed: 10-227rpm

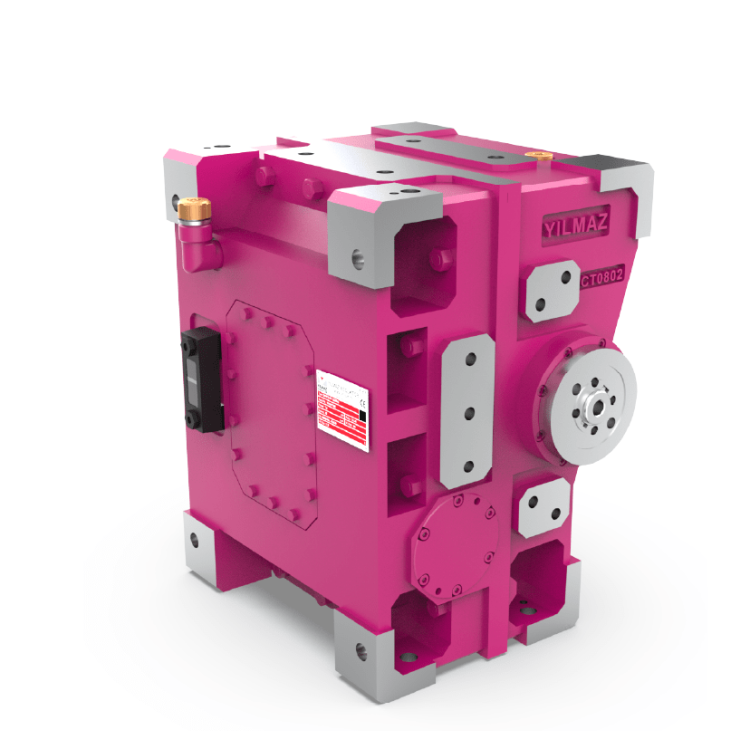

CT Series

Gear Unit for Circular Saw Machines

Ratio: 4,36-5,25

Motor Power: 7,5-15kW

Output Speed: 95-115rpm

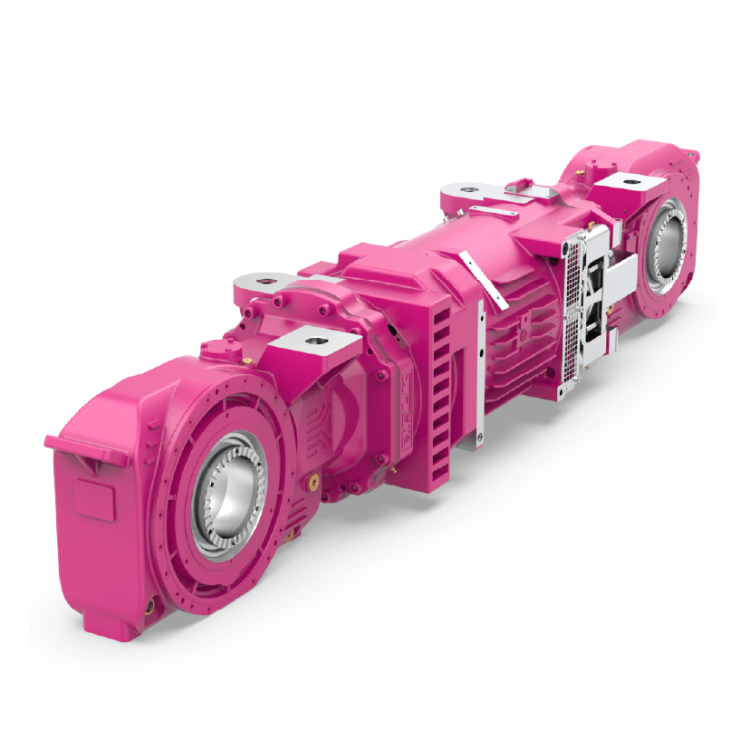

LRG Series

Bevel-Helical Gear Units for Trams

Ratio: 5,2

Torque: 1.660Nm

Motor Power: 110kW

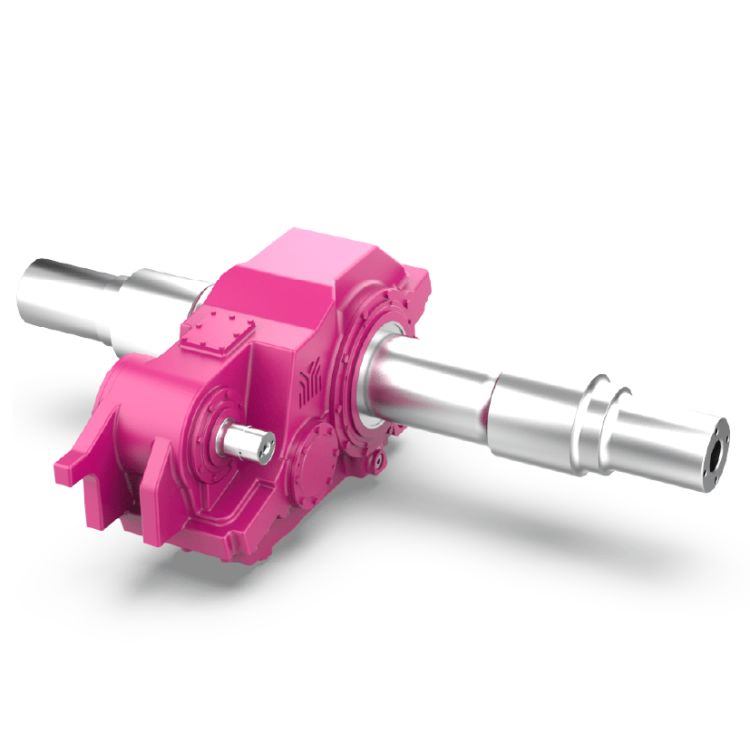

HRG Series

Helical Gear Units for Railways

Ratio: 4,57

Torque: 7.084Nm

Motor Power: 325kW

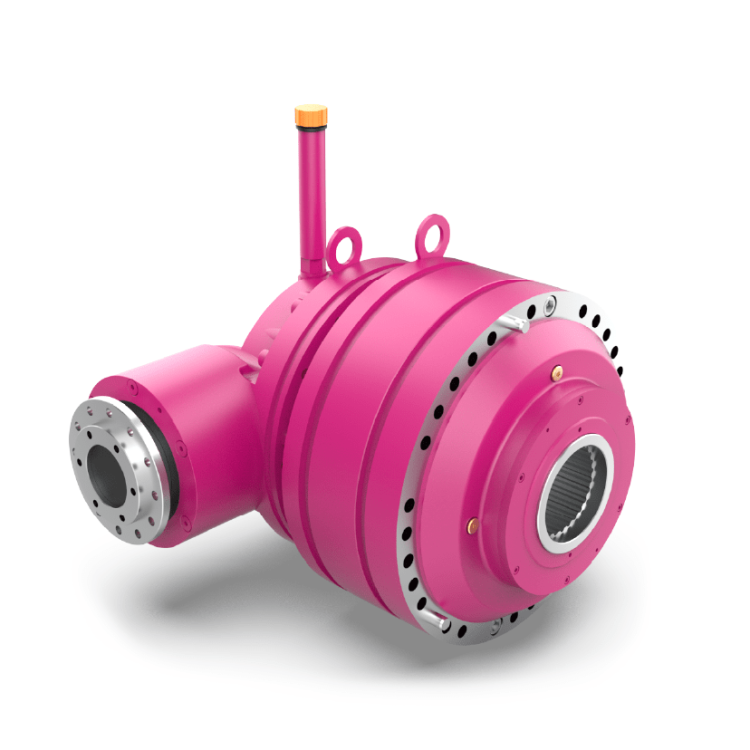

P.R Series

Gear Units for Wind Turbines

Ratio: 184,31

Nominal Torque: 11.000Nm

Static Torque: 22.000Nm

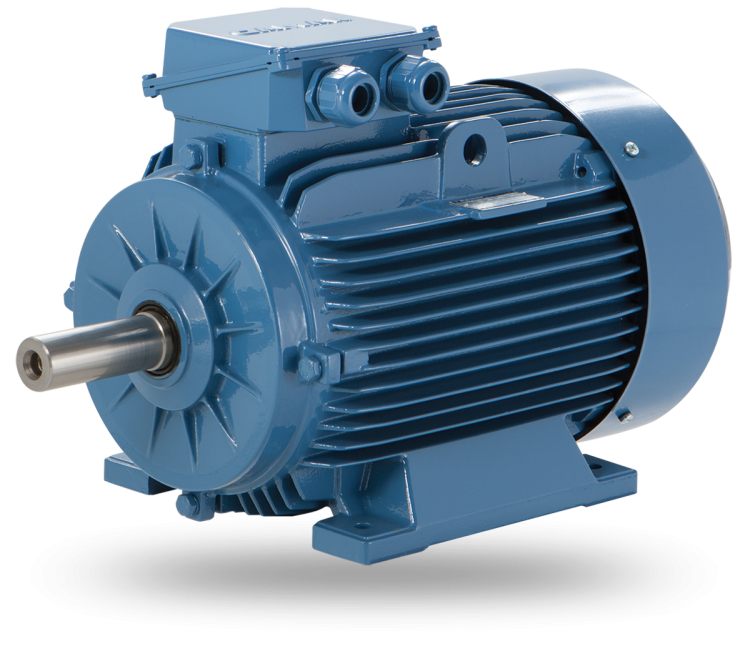

Electric Motors

GAMAK, one of the few electric motor factories in the world where all production is gathered under one roof, produces medium voltage motors and low voltage motors. There is a wide range of products in aluminum and cast iron frames, 0.06 - 3,000 kW power, 56 - 630 types.

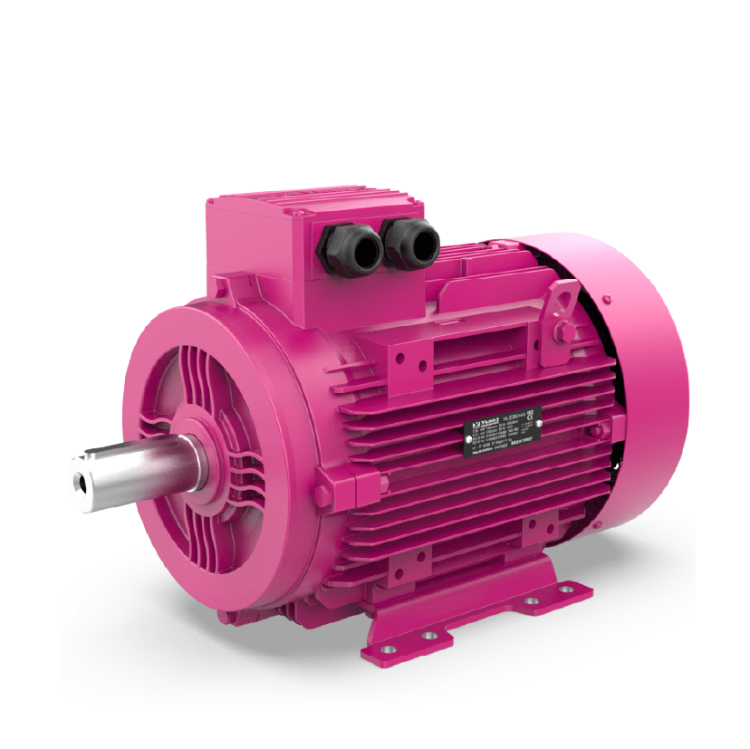

ELK Motor
AC Motor

Power Range : 0,12-200kW
Number of Poles : 2P, 4P, 6P
Efficiency Class : IE2, IE3, IE4

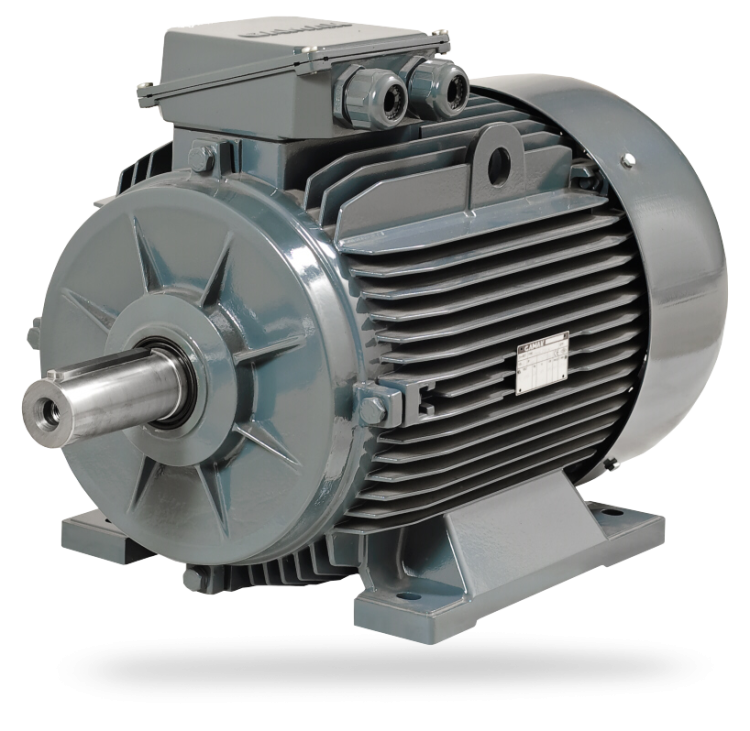

GAMAK Motor

Single Phase Asynchronous Motors

Rated Output : 0.18-0.75 kW
Number of Poles : 2P, 4P
Efficiency Class : IE2, IE3, IE4

GAMAK Motor

Three Phase Asynchronous Motors

Rated Output : 0.18-0.75 kW

Number of Poles : 2P, 4P

Efficiency Class : IE2, IE3, IE4

Automation Products

Variable Frequency Drives

YB1000
Basic Series

Power Range : 0,37-22kW
Supply Voltage : 1~230V/3~400V
Control Technique : V/f

YA2000
Advanced Series

Power Range : 0,37-450kW
Supply Voltage : 1~230V/3~400V
Control Technique : V/f, SLVC

YE8000
Expert Series

Power Range : 0,75-710kW
Supply Voltage : 1~230V/3~400V
Control Technique : V/f,SLVC,CLVC

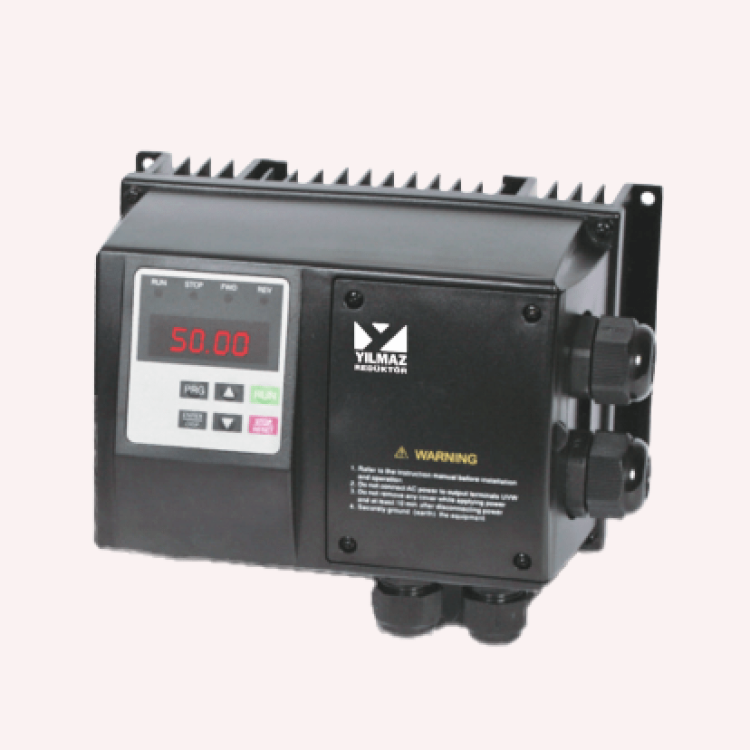

YP65
Wall Mounted

Power Range : 0,75-30kW
Supply Voltage : 1~230V/3~400V
Control Technique : V/f

YP65-V
Wall Mounted

Power Range : 0,75-22kW
Supply Voltage : 1~230V/3~400V
Control Technique : V/f, SLVC

YI1000
Integrated Series

Power Range : 0,75-3,7kW
Supply Voltage : 1~230V/3~400V
Control Technique : V/f

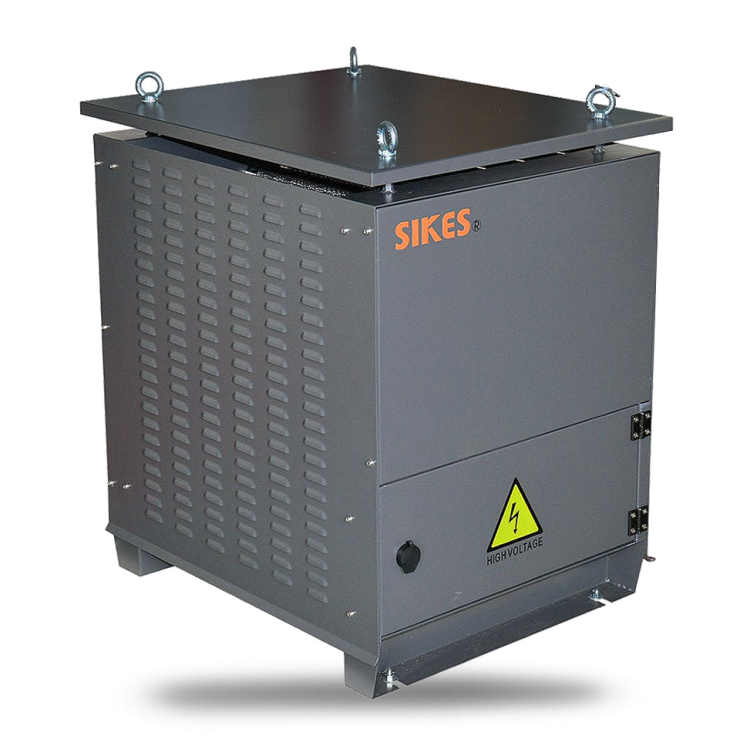

Braking Resistor Cabinet

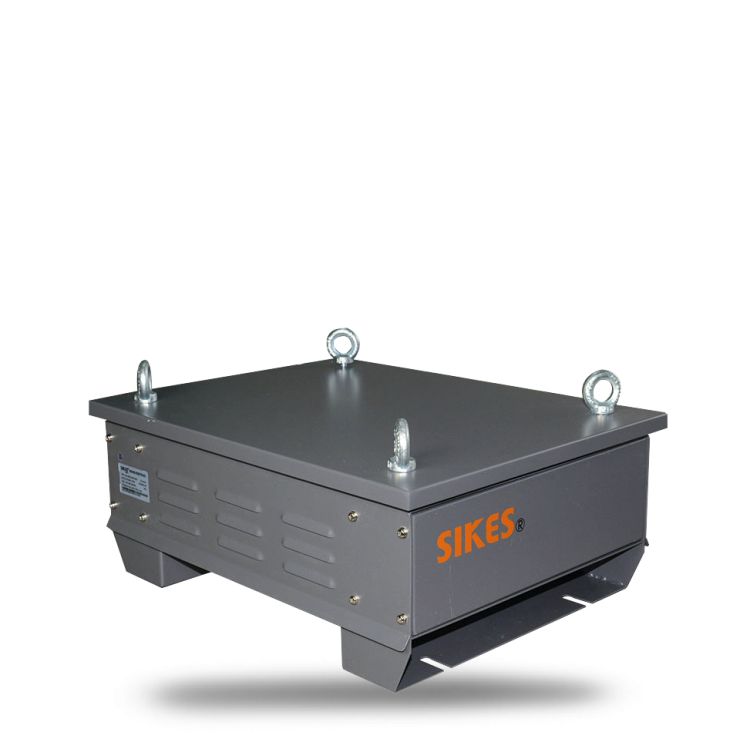

Braking Resistor Cabinet 10kW

Description of Stainless Steel resistor Cabinet :
Stainless Steel resistor Cabinet ,endurable & efficient;
High temperature withstand ability , as high as 1200℃; IP54 protection.
Anti-corrosion SS tube resistor,high fusion point nickel-chromium resistance wire ,fusion point>1200℃;
Anti-corrosion SS304 resistor seal tube ,high temperature magnesium oxidant stuffing between resistance and seal tube ;
High temperature magnesium has good insulation and heat conducting function.

Function of Stainless Steel resistor Cabinet :
suitable for harsh application area , long lasting working time.

Application of Stainless Steel resistor Cabinet :
Crane , industrial elevator, hoist braking purpose.

Braking Resistor Cabinet 95 kW

Description of Stainless Steel resistor Cabinet :
Stainless Steel resistor Cabinet ,endurable & efficient;
High temperature withstand ability , as high as 1200℃; IP54 protection.
Anti-corrosion SS tube resistor,high fusion point nickel-chromium resistance wire ,fusion point>1200℃;
Anti-corrosion SS304 resistor seal tube ,high temperature magnesium oxidant stuffing between resistance and seal tube ;
High temperature magnesium has good insulation and heat conducting function.

Function of Stainless Steel resistor Cabinet :
suitable for harsh application area , long lasting working time.

Application of Stainless Steel resistor Cabinet :
Crane , industrial elevator, hoist braking purpose.

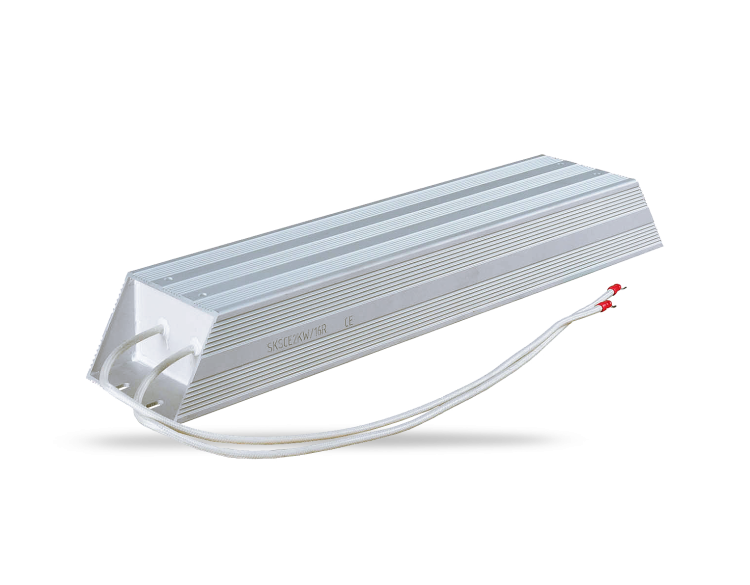

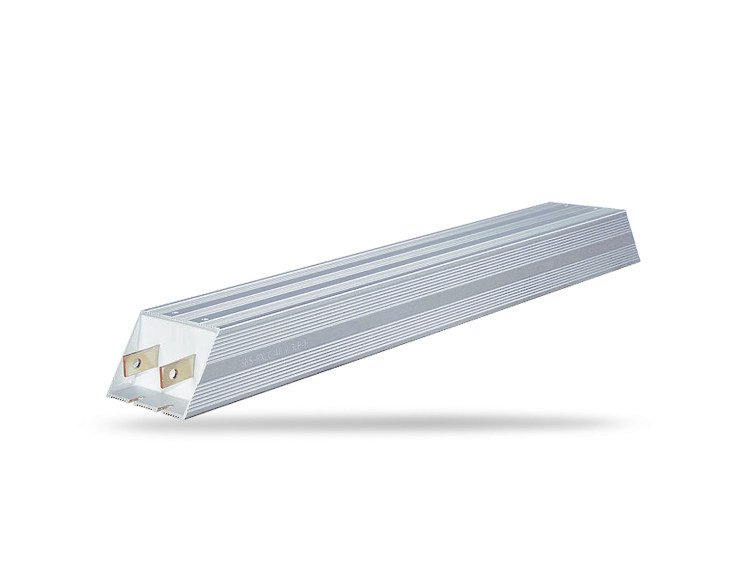

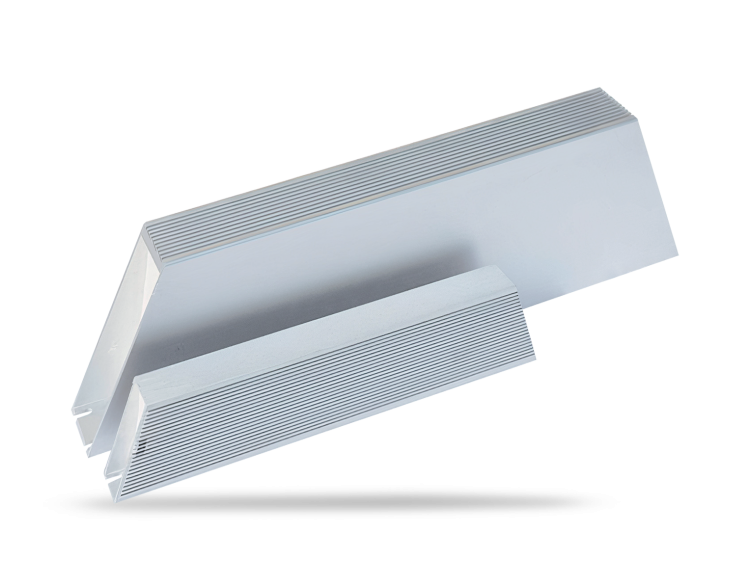

Aluminum Housed Resistor

Aluminum Housed Resistor RXLG 1600W

The RXLG series resistors with optional integrated thermal switch from our medium power range of ALUMINIUM HOUSED COMPACT BRAKE RESISTORS are electrically insulated and with small dimensions.

They can easily be fitted into compact constructions and are especially designed to endure high pulse loads in industrial drive systems.

Aluminum Housed Resistor RXLG 2200W

The RXLG series resistors with optional integrated thermal switch from our medium power range of Aluminium Housed Compact Brake Resistors are electrically insulated and with small dimensions.

They can easily be fitted into compact constructions and are especially designed to endure high pulse loads in industrial drive systems.

Aluminum Housed Resistor RXLG 400W

The RXLG series resistors with optional integrated thermal switch from our medium power range of ALUMINIUM HOUSED COMPACT BRAKE RESISTORS are electrically insulated and with small dimensions.

They can easily be fitted into compact constructions and are especially designed to endure high pulse loads in industrial drive systems.

Dereli Electromagnetic Brake Assembly

SPRING APPLIED BRAKES

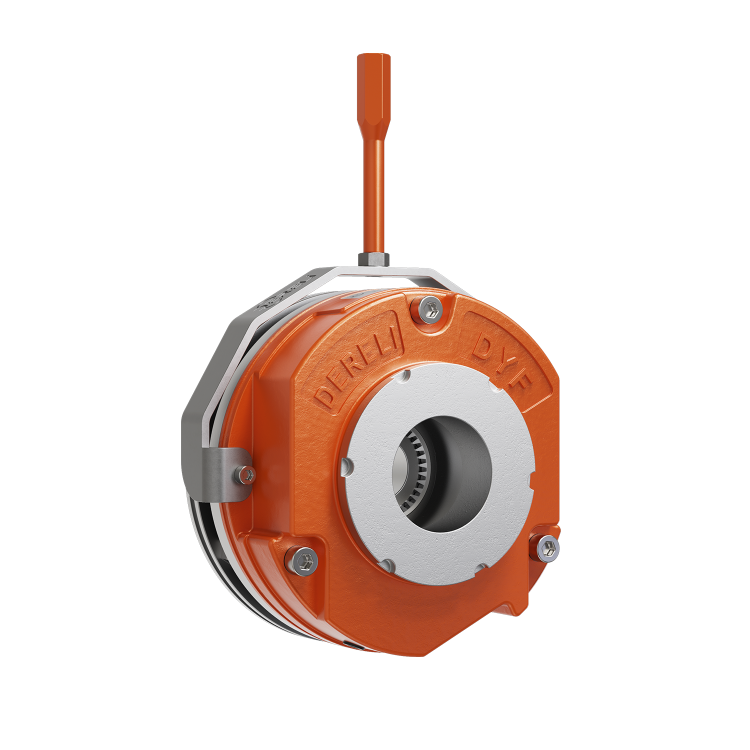

DYF SERIES

Size :
01, 02, 03, 04, 05, 06, 07, 08, 09, 09-D, 10, 10-D
Features :
- Torque in the range of 3 - 2800 Nm
- 10 different sizes
- Standart voltages 24 V, 48 V, 98 V, 190 V
- Designed modular structure and easy assembly for
- applications
- Adjustable working gap and braking torque
- Protection class in the range of IP 54 … IP 66 on request
- HC class enamel coil wire insulation (200 °C)
- Metal parts are coated to resist corrosion
- Brake coil insulated with epoxy resin
- Short switching times
- Brake operating sound level < 70 dB
- Asbestos-free, low wear rate and long life pads
- It is designed according to 100% working principle
- Durable design up to -40 °C with cold climate version
- (CCV) (optional)
- Noise reduction < 45 dB (optional)

DF SERIES

Size :
05, 10, 25, 40, 50, 100, 200, 300, 400, 500, 800, 1600, 1600-D

Features :
- Torque in the range of 5 - 3300 Nm
- 10 different sizes
- Standart voltages 24 V, 48 V, 98 V, 190 V
- Designed modular structure and easy assembly for
- applications
- Adjustable working gap and braking torque
- Protection class in the range of IP 54 … IP 66 on request
- HC class enamel coil wire insulation (200 °C)
- Metal parts are coated to resist corrosion
- Brake coil insulated with epoxy resin
- Short switching times
- Brake operating sound level < 70 dB
- Asbestos-free, low wear rate and long life pads
- Protected against external factors due to its closed design
- It is designed according to 100% working principle
- Durable design up to -40 °C with cold climate version
- (CVV) (optional)
- Noise reduction < 45 dB (optional)

DRK SERIES
