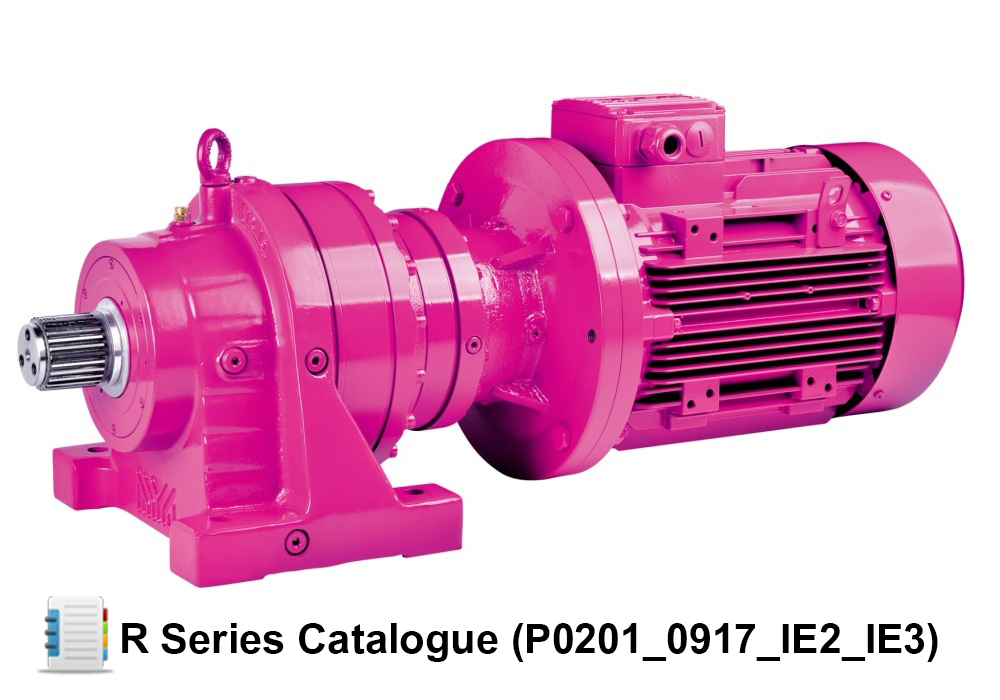

YILMAZ R-SERIES PLANETARY

Yilmaz Reduktor R-Series planetary gearboxes are manufactured in Europe and interchangeable with leading manufacturers such as Brevini E Series, Bonfiglioli Trasmital 300 Series and Stm EX Series.

Yilmaz R-Series gearboxes are available on quick delivery times and are a cost effective alternative to other leading manufacturers.

  • Manufactured in Europe
  • Cast iron housing
  • Nominal torque 50,000nm
  • 1 Year warranty
  • Atex certification available

SPECIFICATIONS
SIZES
20 DIFFERENT SIZES TO CHOOSE FROM
REDUCTIONS
UP TO FOUR STAGES
NOMINAL TORQUE
1000NM TO 50,000NM
RATIO RANGE  3/1 TO 2957/1
INPUT POWER
0.25KW TO 75KW
INPUT OPTIONS IEC, HYDRAULIC, SOLID SHAFT OR NEMA
OUTPUT SIZE
50MM TO 140MM DIAMETER
ACCESSORIES
LOCKING COLLAR, SHRINK DISC, BACKSTOP & OIL EXPANSION TANK
OIL TYPE
MINERAL, SYNTHETIC & FOOD GRADE
COOLING OPTIONS
HEAT EXCHANGER, COOLING COIL & AIR/OIL COOLER
