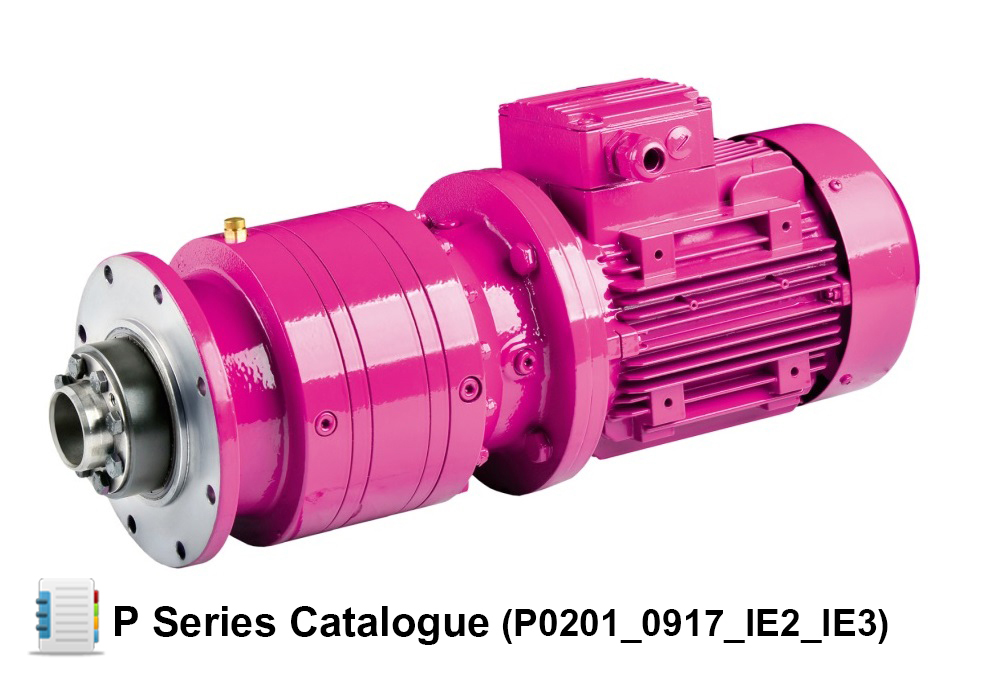

YILMAZ P-SERIES PLANETARY
Yilmaz Reduktor P-Series planetary gearboxes are manufactured in Europe and interchangeable with leading manufacturers such as Brevini E Series, Bonfiglioli Trasmital 300 Series and Stm EX Series.
Yilmaz P-Series gearboxes are available on quick delivery times and are a cost effective alternative to other leading manufacturers.
Yilmaz Reduktor P-Series planetary gearboxes are manufactured in Europe and interchangeable with leading manufacturers such as Brevini E Series, Bonfiglioli Trasmital 300 Series and Stm EX Series.
Yilmaz P-Series gearboxes are available on quick delivery times and are a cost effective alternative to other leading manufacturers.
- Manufactured in Europe
- Cast iron housing
- Nominal torque 50,000nm
- 1 Year warranty
- Atex certification available
SPECIFICATIONS
| SIZES | 20 DIFFERENT SIZES TO CHOOSE FROM |
| REDUCTIONS | UP TO FOUR STAGES |
| NOMINAL TORQUE | 1000NM TO 50,000NM |
| RATIO RANGE | 3/1 TO 2957/1 |
| INPUT POWER | 0.25KW TO 75KW |
| INPUT OPTIONS | IEC, HYDRAULIC, SOLID SHAFT OR NEMA |
| OUTPUT SIZE | 50MM TO 140MM DIAMETER |
| ACCESSORIES | OUTPUT FLANGES, LOCKING COLLAR, SHRINK DISC, BACKSTOP & OIL EXPANSION TANK |
| OIL TYPE | MINERAL, SYNTHETIC & FOOD GRADE |
| COOLING OPTIONS | HEAT EXCHANGER, COOLING COIL & AIR/OIL COOLER |
