K-Series Bevel Helical

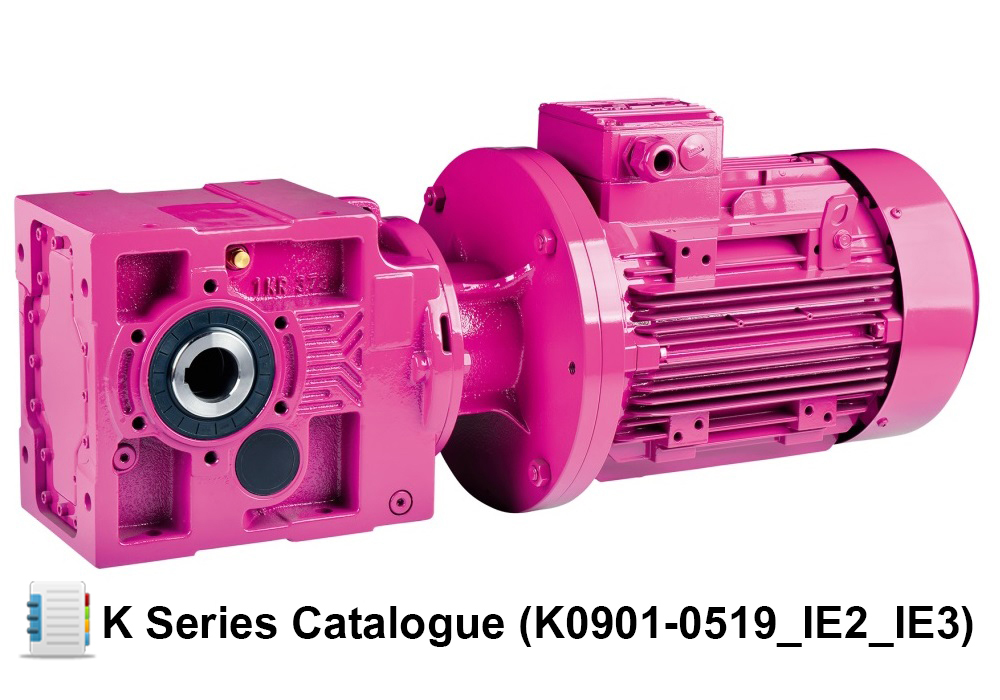

YILMAZ K-SERIES BEVEL HELICAL

Yilmaz Reduktor K-Series right angle Bevel Helical Gearboxes are manufactured in Europe and interchangeable with leading manufacturers such as SEW K Series, David Brown K Series and Flender B/K Series.

Yilmaz K-Series gearboxes are assembled in the UK from component part format for quick delivery and are a cost effective alternative to other leading manufacturers.

Manufactured in Europe
Cast iron housing
Nominal torque 20,000nm
1 Year warranty
Atex certification available

SPECIFICATIONS

SIZES	11 DIFFERENT SIZES TO CHOOSE FROM
REDUCTIONS	UP TO SIX STAGES
NOMINAL TORQUE	80NM TO 20,000NM
RATIO RANGE	6/1 TO 15,619/1
INPUT POWER	0.12KW TO 90KW
INPUT OPTIONS	IEC, SOLID SHAFT OR NEMA
OUTPUT SIZE	20MM TO 110MM DIAMETER
ACCESSORIES	OUTPUT SHAFTS, OUTPUT FLANGES, TORQUE ARM, SHRINK DISC & BACKSTOP
OIL	TYPE MINERAL, SYNTHETIC & FOOD GRADE
