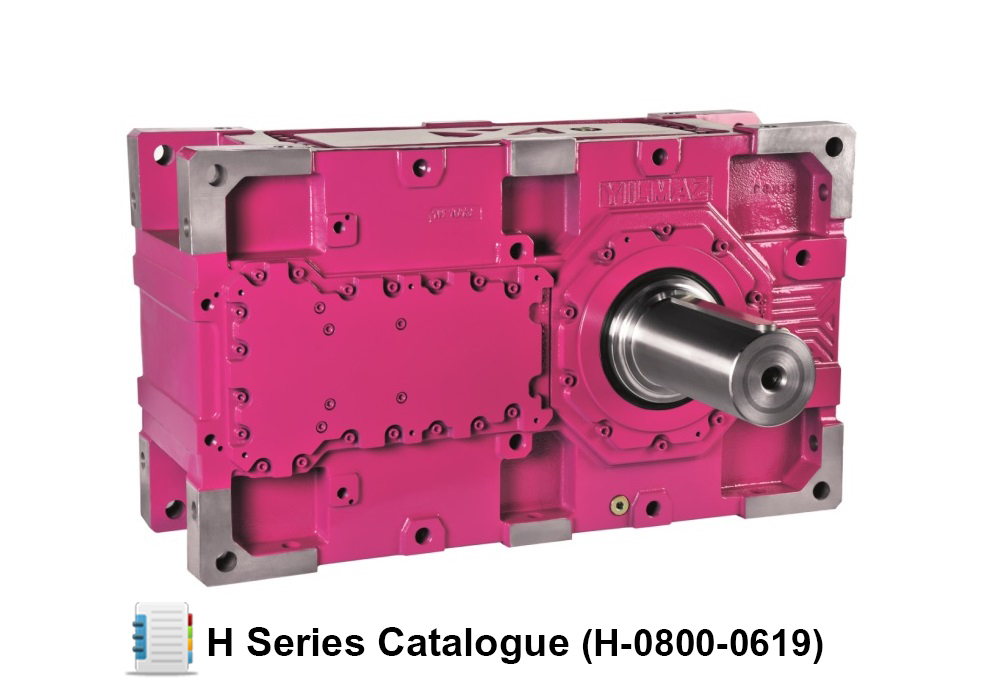

YILMAZ H-SERIES HEAVY DUTY

Yilmaz Reduktor H-Series heavy duty gearboxes are manufactured in Europe and interchangeable with leading manufacturers such as SEW MC Series, David Brown G Series and Flender H Series.

Yilmaz H-Series gearboxes are available on quick delivery times and are a cost effective alternative to other leading manufacturers.

  • Manufactured in Europe
  • Cast iron housing
  • Nominal torque 470,000nm
  • 1 Year warranty
  • Atex certification available
SPECIFICATIONS
SIZES  14 DIFFERENT SIZES TO CHOOSE FROM
REDUCTIONS
UP TO FOUR STAGES
NOMINAL TORQUE
2,500NM TO 470,000NM
RATIO RANGE
4/1 TO 419/1
INPUT OPTIONS
IEC & SOLID SHAFT. SPECIAL INPUTS ON REQUEST
OUTPUT SIZE
60MM TO 240MM DIAMETER
ACCESSORIES
OUTPUT SHAFTS, OUTPUT FLANGES, SHRINK DISC, BACKSTOP & EXTRUDER OUTPUT
OIL TYPE
MINERAL, SYNTHETIC & FOOD GRADE
COOLING OPTIONS HEAT EXCHANGER, COOLING COIL, INTEGRATED FAN & AIR/OIL COOLER
