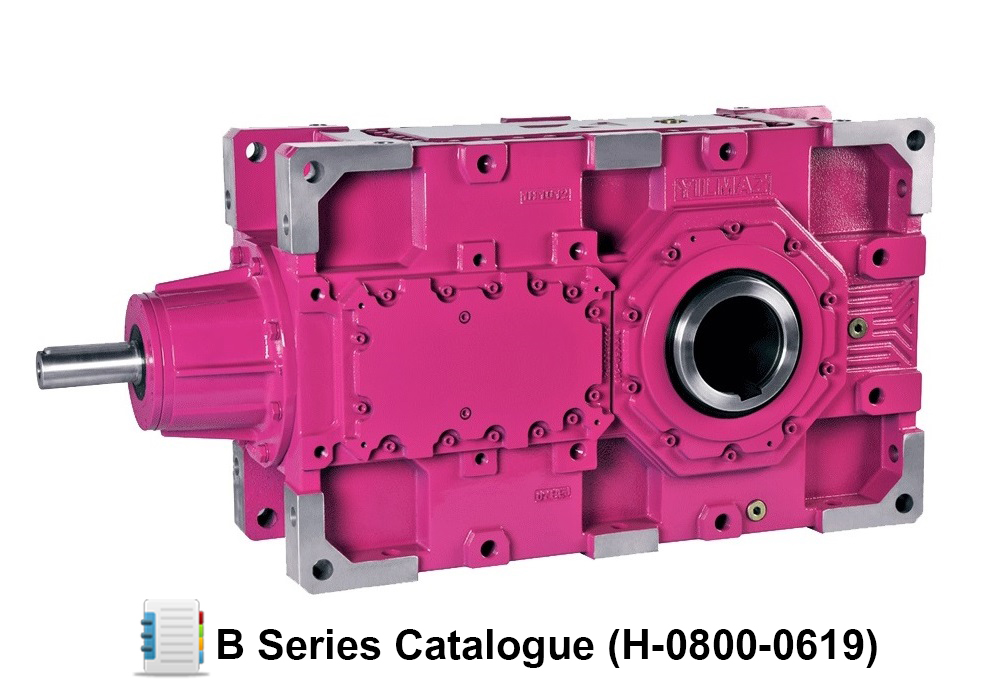

YILMAZ B-SERIES HEAVY DUTY

Yilmaz Reduktor B-Series heavy duty gearboxes are manufactured in Europe and interchangeable with leading manufacturers such as SEW MC Series, David Brown G Series and Flender B Series.

Yilmaz B-Series gearboxes are available on quick delivery times and are a cost effective alternative to other leading manufacturers.


  • Manufactured in Europe
  • Cast iron housing
  • Nominal torque 470,000nm
  • 1 Year warranty
  • Atex certification available
SPECIFICATIONS
SIZES
14 DIFFERENT SIZES TO CHOOSE FROM
REDUCTIONS
UP TO FOUR STAGES
NOMINAL TORQUE  2,500NM TO 470,000NM
RATIO RANGE
10/1 TO 431/1
INPUT OPTIONS  IEC & SOLID SHAFT. SPECIAL INPUTS ON REQUEST
OUTPUT SIZE
60MM TO 240MM DIAMETER
ACCESSORIES
OUTPUT SHAFTS, OUTPUT FLANGES, SHRINK DISC & BACKSTOP
OIL TYPE
MINERAL, SYNTHETIC & FOOD GRADE
COOLING OPTIONS
HEAT EXCHANGER, COOLING COIL, INTEGRATED FAN & AIR/OIL COOLER
